Modification of a Canon EOS 40D for Astrophotography

The Modification

6 years after modding my 20D it is time for a small upgrade. I acquired a second 40D to modify and used two tutorials as guide. I ran into two issues. The first I encountered quite early on. The square white connector on the main PCB (printed circuit board - the green card with electronic components) of the camera was sealed with a black glue. This prevented me from simply sliding out the optical cable and forced me to spend an hour carefully removing glue with a pincer... The second one was the old filter turned out to be very brittle. It started cracking while I cut the adhesive holding it. When I lifted it out it broke. Luckily thanks to a layer of coating it held together, but glass splinters were all over the sensor. I managed to clean them all out with compressed air. I did end up with a few dust specks under the filter, but they are in the periphery and shouldn't bother me too much.

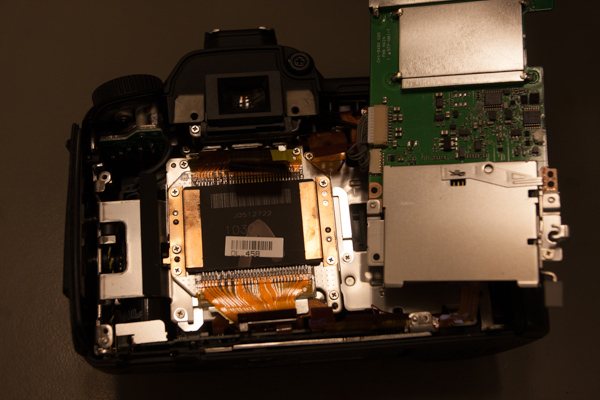

40d modification


40d modification


40d modification


40d modification


40d modification


40d modification


40d modification


Tutorials

IR-photo.net.

Life Pixel.
